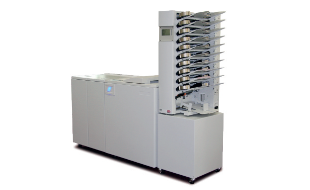

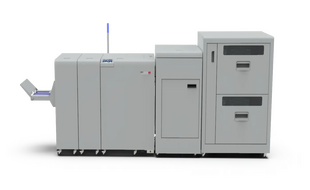

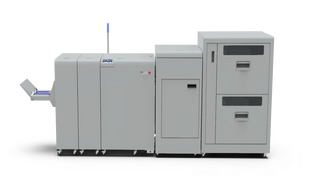

  4. Booklet Makers & CollatorsMorgana BM350 / BM500Morgana BM350 / BM500

Production Booklet Maker for all printers

The Morgana BM350/500 is a modular booklet making solution for centralised reproduction departments and commercial print

providers - large and small. Customers can choose from a range of cost-effective options to support their application requirements.

The system is packed with a host of unique technologies that deliver finished books with quality to match today’s printing systems. Customers are demanding more media versatility from digital print. The Morgana BM350/500 is designed from the ground up to work with today’s coated, uncoated and textured paper stocks.

BM350 process booklet up to 140 pages

and BM500 process up to 200 pages

PDF icon Morgana BM350_500 brochure

Share on:

Technical Specifications

Main Features

Model: BM350 / BM2000S

Fold capacity: 35 sheets of 80 gsm (BM350), 50 sheets of 80 gsm (BM500)

Stapling capacity: 35 sheets of 80 gsm (BM350), 50 sheets of 80 gsm (BM500)

Speed: 3000 books / hour

Max paper size: 320 x 457mm

Min paper size: 206 x 275mm

Paper weight: 64 - 300gsm

Staling method: Saddle

Stapling head: 2

Stapling position: 4

Staple size: Stapling 26/6, 66/6

Footprint (W)x(D)x(H): 1010 x 810 x 752mm

Connectable Input: High Capacity Dual Bin Feeder, Air Collator Feeder, Creasing Unit, Creasing Side Trimmer Unit

Connectable Output: Square Folder, Front Trimmer, Belt Stacker
