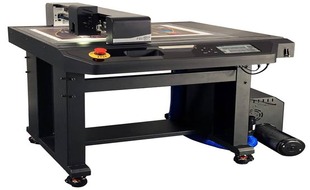

  2. HomeMorgana ColorCut FB780TMorgana ColorCut FB780T

Professional Cutter, Creaser & Perforator All-In-One-Pass

The NEW FB780-T is the world's first B2 flatbed cutter with the ultimate crease and precision cutting for any die-cut application. This powerful and accurate device can cut and crease virtually any form of print, from sample and prototype packaging for high-end products and protective cartons to synthetic point-of-sale items and kiss-cut adhesive labels/stickers. With our combined industry leading ColorCut Pro software, the FB780-T brings many advanced features to aid design and production.

PDF icon Download here: FB780-T Brochure

Share on:

Features

Type of Cut

Die-Cut, Half Cut (Kiss-Cut), Perf

Maximum Media Size

440mm x 580mm

Effective Contour Cutting Area

340mm x 480mm

Cutting Depth

Paper/Card - Up to 600 micron

Max depth - 800 micron (low density substrate i.e softboard)

Speed Option

High Definition: 750mm/s

Standard Mode: 960mm/s

Fast Mode: Up to 1200mm/s

Dimensions

1,068(L) x 860(W) x 1,015(H) mm (includes vacuum fan)

NET Weight

69kgs including fan

Power supply Power consumption

100-240v 50/60Hz, 150W
