Quality high speed creasing folding at one go with new SmartScreen technology

DigiFold has been one of Morgana’s best selling products since it was first introduced in 2001

DigiFold Pro is an automatic creasing / folding machine designed specifically for the professional digital or litho printer who has a need to crease and fold digitally printed, heavy weight or cross grained stock.

Creasing versus Scoring.
Traditional rotary scoring machines use circular blades that are in constant motion as the stock passes through them. This creates a ploughing action that actually cuts through the top fibres of the paper or card in order to create a score. Inevitably this weakens the paper and encourages cracking. In contrast, the Morgana DigiFold Pro employs a unique creasing rule and matrix, the DynaCrease, that eliminates tearing and-- therefore, cracking.

By using this patented technology, the DynaCrease, we have managed to increase the speed to over 6,000 A4 sheets an hour. Speed increases when running smaller stocks and is achieved by creasing the sheet without stopping it, yet maintaining an accuracy of +/- 0.1mm.

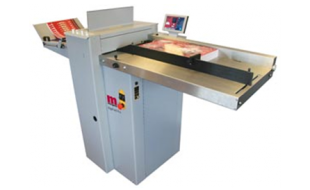

MORGANA DigiFold Pro Folder

Technical specification
  • Speed: 6000 sheets per hour
  • Dimensions: L 1980mm x W 655mm x H 1265mm
  • Electrical: 240v 50/60hz
  • Sheet size: max 900mm x 385mm*
  • Sheet weight: Up to 0.4mm (approx 400gsm)
  • including laminated material

* Needs optional extension table
