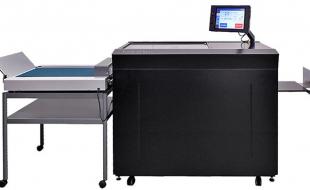

Professional Cutter, Creaser & Perforator All-In-One-Pass

AeroCut X Pro is an ideal solution for finishing especially short-run digitally printed applications, such as business cards, postcards, invitations, greeting cards, leaflets, tickets and more. The machine is a highly accurate slitter, cutter and creasing device, that can take your oversized stock up to 370mm x 750mm from a digital or litho press and deliver a wide range of finished documents. It can also perforate stocks both across and along feeding direction. The Cross perforation unit enables the machine to perforate sheets across feeding direction, both strike and partial perforation.

PDF icon Uchida Aerocut X Pro Brochure

Share on:

Technical specifications

Functions

Slit, cross cut, crease, Perforate, score, slit-score

Feedable paper size

210(W)x210(L) - 370(W)x520(L) mm (up to 1,600mm with support)

Minimum finished size

55(W)x45(L) mm

Paper weight

120 - *400 gsm
*Depending on paper quality

Operation

10” Color touchpanel

Job memories

266 preset jobs
100 + 50 customized job memories

Feeding mechanism

The AeroCut X Pro’s air-suction top feed system feeds, precisely and without damage, a variety of weight and quality of stock one-by-one from the top of the ream.The feed tray has a stacking capacity of 100mm.

Speed (Sheets/min. )

21 up business cards (SRA3): 9 sheets / min

8 up post cards (SRA3): 14 sheets / min

1 crease (A4): Up to 68 sheets / min

Dimensions

1,177(W) x709(D) x1,076(H) mm

Footprint

2,397(W) x 709(D)mm

NET Weight

290kg

Power supply Power consumption

100-120VAC or 200-240VAC, 50/60Hz
