Simply gigantic: for really large quantities and complete lever arch files

Large feeding table with conveyor belt and electronically secured safety guard in the feeding area | control panel for forward/stop/reverse | safety lock and key, main switch and emergency cut-off switch | optical indicators for the operational status of the machine | «2-MATIC» – two automatic speed levels with automatic adaption of the shred speed to the paper quantity fed | electronic control prevents overfeeding: automatic reverse and refeeding in case of paper jams | automatic cut-off if the shred bag is full | centralised oiler for effective and convenient lubrication of the shredding head | large shred compartment with electronically secured door on the rear side of the machine | shred trolley with plastic bag mounting frame and 300 litres capacity | powerful three phase motors (9.0 kW) | thermal motor protection | robust shredding heads with special hardened cutting shafts made of high-quality steel, resistant against soft metal objects | 2 years guarantee on the cutting tools, one year on all other parts | machine mobile on castors | accessories at an extra cost: second shred trolley and a modular conveyor belt system for the shred exit area

Product characteristics

Technical Specifications

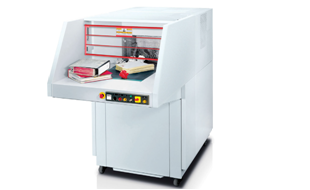

IDEAL 5009
  • Volume 300 litres (shred trolley)
  • Power 400 V / 50 Hz / 3 ~**
  • Motor capacity 9 kW three phase motor
  • Dimensions 1714 x 1036 x 2170 mm (H x W x D)
  • Weight 1130 kg



Shred Types Available:

Level P-2 8 x 40-80 mm particle cut
Sheet capacity*: 600-700 I 500-600

Level P-3 6 x 50 mm particle cut
Sheet capacity*: 300-400 I 250-350



* A4 paper 70 g/m2 I 80 g/m2
