Perfect Jogging Performed Quickly with the Air Blower

Jogging time is significantly reduced by the effect of the air blower. Wet ink on printed papers is quickly dried by the air, thus preventing staining of the paper by the ink. See the effect and improvement in productivity compared with conventional joggers.

Neat jogging rapidly achieved with the powerful air blower
Thanks to the high-power air blower, which is the most powerful in its class, the AJ-700 reliably jogs unevenly arranged papers very quickly. It prevents the paper from becoming soiled by blowing air between the sheets.



Ideal Paper Handling
Ideal paper handling is possible with the AJ-700 before loading into a printer or collator so that the paper feed error such as empty and double feeding are thereby improved.



Quick Drying of Ink and Elimination of Static
Wet ink can be rapidly dried by the effect of the air, which is even more effective in the case of two-sided printing. It is also effective for elimination of static electricity and powder stayed on the paper after printing.



Various Job Modes
Jogging strength and air volume are adjustable according to paper quantity and quality. In addition, the AJ-700 can operate in various modes such as air only, jogger onlyreset timer operation and the time interval difference mode(continuous jogging for a preset period after the air has stopped)

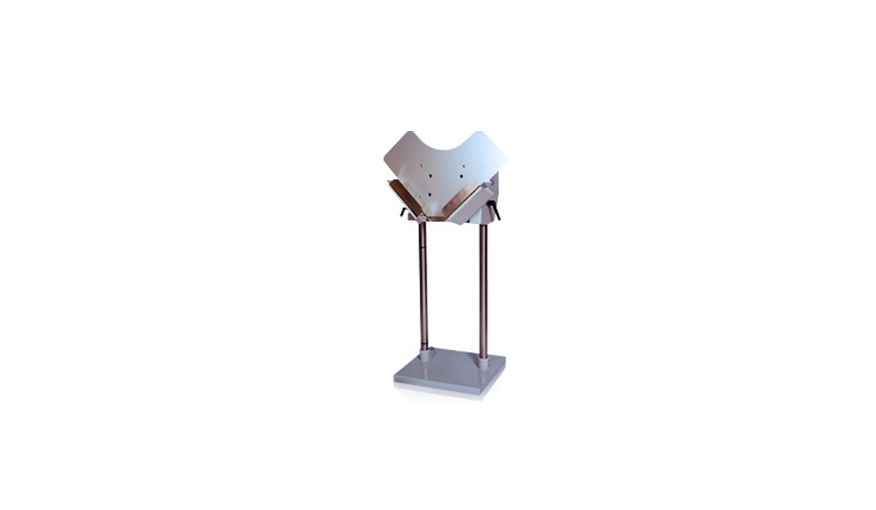

UCHIDA AJ-700

Specifications

Main Features
  • Paper size Max. -  328 X 450 mm
  • Paper size Min. - 128 x 187 mm
  • Max. paper loading - 800 pcs. of 64g’m2
  • Thickness of jogger tray - 10cm
  • Jogging system - Vibrated by eccentric balanced weight
  • Air blown system - by Air blower
  • Power consumption - 720W
  • Power source - 230VAC, 50 or 60Hz
  • Net weight - 35Kg
  • Dimensions(W x D x H) - 470 x 420 x 995 mm
  • Standard accessories - A4 & A3 size jogger tray & Foot switch
