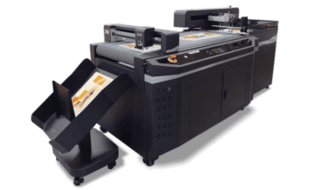

  2. HomeMorgana ColorCut FB9000-TMorgana ColorCut FB9000-T

Professional Cutter, Creaser & Perforator All-In-One-Pass

Ultra-fast, automated flatbed digital die cutter with class-leading force for die-cutting and creasing. The Intec FB9000 PRO offers high-speed production, precise media control, and user-friendly operation. It provides up to 1.5 kg creasing force and 1.2 kg cutting force, handling media up to 1,000 µm.

PDF icon Download Here: FB9000-Pro Brochure

Share on:

Features

Type of Cut

Die-Cut, Half Cut (Kiss-Cut), Perf

Maximum Media Size

800mm x 1100mm

Effective Contour Cutting Area

680mm x 1020mm

Cutting Depth

Paper/Card - Up to 800 micron

Max depth - 1000 micron (low density substrate i.e rice paper/softboard)

Active Tangential Blade: Fluted/corrugated board up to 3mm

Speed Option

High Definition: 750mm/s

Standard Mode: 960mm/s

Fast Mode: 1,200mm/s

Dimensions

1.860(L) x 1,490(W) x 620(H) mm (includes vacuum fan)

NET Weight

246kgs including fan

Power supply

100-240v 50/60Hz, 350W
