Professional guillotine with EASY-CUT, automatic clamp, programmable power backgauge with touch pad & safety guards

650 mm cutting length | electro-mechanical blade and clamp drive | power backgauge with ”EP“ backgauge control module | electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast) | optical cutting line indicator with bright and durable LEDs.

  • Cutting length 650 mm
  • Cutting height 80 mm
  • Programmable power backgauge with touch pad
  • Safety guards both front and rear

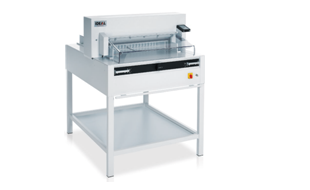

IDEAL 6655 Guilotine

Adjustable backgauge with narrow separations and plastic gliders| two side lays each on front and rear tables | high-quality blade made from “Solingen steel” | solid steel blade carrier and adjustable blade guides | automatic clamping system, guided on both sides for evenly distributed clamping pressure (clamp can be lowered or raised independently from blade) | solid all-metal construction | complete with stand and storage shelf SCS (Safety Cutting System): Hinged, electronically controlled safety guard on the front table; transparent safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade change from the front of the machine without removing covers. PROGRAMMABLE »EP« CONTROL MODULE FOR THE POWER BACKGAUGE Digital display for measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch) | 10-button key pad for presetting of measurement | memory key for repeat cuts | 99 programs with 99 steps in each program (up to 9 repeat cuts can be integrated into a program as one single program step) | setting of program steps via “Start” button | “SET” function key for reference measurement | programmable EJECT function – for pushing out the paper | two programmable keys for quick setting of frequently needed measurements | self-diagnosis system with error indication on display
