Professional guillotine with hydraulic blade & clamp drive, EASY-CUT, programmable power backgauge with touch pad & IR light beam safety curtain

520 mm cutting length | electro-mechanical blade drive | hydraulic clamp drive | clamping pressure infinitely adjustable (min. 200 daN / 440 lbs. – max. 1100 daN / 2420 lbs.) with optical indicator (pressure gauge) | foot pedal for pre-clamping plus cutting line indicator | false clamp plate for delicate work | power backgauge with fully programmable ”EP“ backgauge control module | electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast) | optical cutting line with bright and durable LEDs | spindle guided backgauge for precise positioning | adjustable backgauge with narrow separations (32 mm) and plastic gliders | two side lays on front and rear table | solid steel blade carrier and adjustable blade guides | highquality blade made from “Solingen steel” | set of side tables (left and right) available at an extra cost

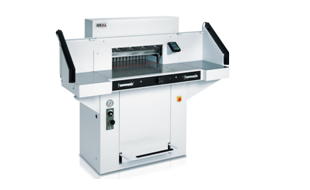

IDEAL 5560 / 5560 LT Guillotine

SCS (Safety Cutting System):

Light beam safety curtain to secure the working area on the front table; transparent safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade change from the front of the machine without removing covers.



PROGRAMMABLE »EP« CONTROL MODULE FOR THE POWER BACKGAUGE

Digital display for measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch) | 10-button key pad for presetting of measurement | memory key for repeat cuts (manual) and additional automatic memory | 99 programs with 99 steps in each program (up to 9 repeat cuts can be integrated into a program as one single program step) | programmable EJECT function – for pushing out the paper | program runs automatically in the program and memory mode | “SET” function key for reference measurement | two programmable keys for quick setting of frequently needed measurements | self-diagnosis system with error indication on display
